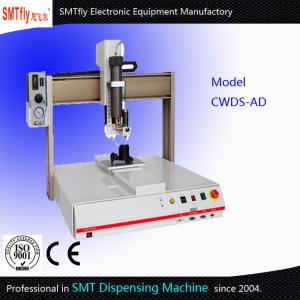

desktop Confomal Glue Coating Machine For Pcb Industry

Shenzhen SMTfly Electronic Equipment Manufactory Ltd

desktop Confomal Glue Coating Machine For Pcb Industry

  • 1
  • 2

Place of Origin : dongguang china

Brand Name : SMTfly

Certification : CE ISO9001

Model Number : CWDS-AD

MOQ : 1 set

Packaging Details : each set be packed in plywood case

Delivery Time : 1-3 days after payment confirm

Payment Terms : TT in advance

Supply Ability : 3000/year

Contact Now

Benchtop Automatic Confomal Glue Coating Machine For Pcb Industry

Coating machine for pcb is suitable for various kinds of liquid glue dispensing, such as UV glue, AB glue,epoxy

(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste,

thermal grease, welding control paste, transparent paint, screw fixative, etc.

Main Technical Parameters

Model CWDS-AD-200 CWDS-AD-300 CWDS-AD-400 CWDS-AD-500
Work area (X*Y*Z) 200*200*50mm 300*300*100mm 400*400*100mm 500*500*100mm
Max. speed 500mm/sec
Resolution 0.02mm
Repeatability ±0.02mm
Operation interface LCD touch panel/Handhold control box
Drive mode Micro stepping motor/belt
Power AC220V 50-60HZ 0.8KW
Size 380*370*500mm 480*500*600mm 580*600*600mm 640*700*720mm
Net weight About 20KG About 30KG 40KG 50KG
Operation environment Humidity:20%-90% RH, Temperature:0 °c -40 °c

Advantages

Feature of Glue dispensing equipment

1. English handhold control box, easy use.
2. Dispense points, lines, surface, circles, arc, irregular curves, three axis controllable.
3. The software has array, horizontal move and rotate operation function.
4. Can set the glue amount, speed and time etc. Stable glue flow and no leaking.
5. Four barrels work at the same time to improve efficiency.

Detailed Images

Why us

1.Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support.

2.Mature technique & forerunner to process makes high quality machinery.

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine

Our R&D team continuously upgrade the existing machines to meet the market development trend.

3.Effective customer service. pcb router machine

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.

4.One year warranty for the machines except accessories. b router machine

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.

Our mission:

Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success

Our Vision:

PCB industry to become the world's leading solution providers PCB separator. pcb router machine

Q:What's the delivery term?

A: It depends on the machines dimensions and weight,also according to customer's requirement. It could be shipped by sea, by air or by air express. Usually, the delivery time is 15-20 working days after receipt of down payment. If you are in urgent need, we can make special arrangement for you.


Q:What’s the payment term?


A: T/T, L/C and other payment terms could be negotiated.

Q: What's the warranty and after-sales service?


A: We provide free parts warranty for 12 months. Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory.


Q:Do you accept customization service?


A: Yes, the inner chamber dimensions can be customized as per your specific request.

Production flow

desktop Confomal Glue Coating Machine For Pcb Industry

Cooperative Clients

desktop Confomal Glue Coating Machine For Pcb Industrydesktop Confomal Glue Coating Machine For Pcb Industrydesktop Confomal Glue Coating Machine For Pcb Industrydesktop Confomal Glue Coating Machine For Pcb Industry
